APPLICATIONS
Spare fans for fan coil units and fan heater units.

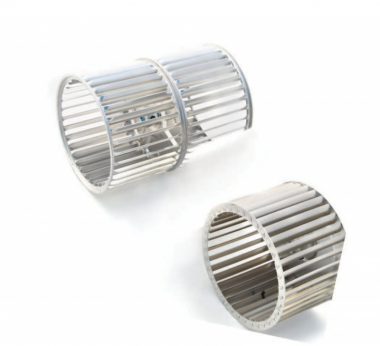

SINGLE INLET CENTRIFUGAL FANS

DOUBLE INLET CENTRIFUGAL FANS

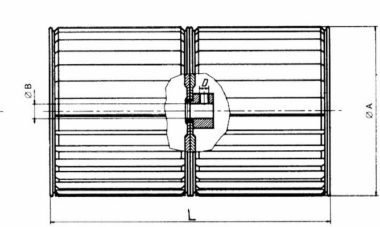

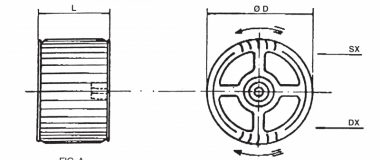

CODE FAET	Ø mm	L mm	ØB mm	THICKNESS AL	N° FINS	ROTATION
0403054DX	133	148	12.7	0.65	30	RH
0403054SX	133	148	12.7	0.65	30	LH
0402028	133	176	12.7	0.65	30	RH
0402029	133	176	12.7	0.65	30	LH
0402030	133	196	12.7	0.65	30	RH
0402031	133	196	12.7	0.65	30	LH
0403055DX	146	148	12.7	0.65	33	RH
0403055SX	146	148	12.7	0.65	33	LH
0402032	146	176	12.7	0.65	33	RH
0402033	146	176	12.7	0.65	33	LH
0402034	146	196	12.7	0.65	33	RH
0402035	146	196	12.7	0.65	33	LH
0403056DX	146	216	12.7	0.65	33	RH
0403056SX	146	216	12.7	0.65	33	LH
0403057DX	146	240	12.7	0.65	33	RH
0403057SX	146	240	12.7	0.65	33	LH
0403058DX	160	176	12.7	0.65	36	RH
0403058SX	160	176	12.7	0.65	36	LH
0402065DX	160	196	12.7	0.65	36	RH
0402065SX	160	196	12.7	0.65	36	LH
0402066DX	160	240	12.7	0.65	36	RH
0402066SX	160	240	12.7	0.65	36	LH
0402067DX	180	240	12.7	0.65	38	RH
0402067SX	180	240	12.7	0.65	38	LH
0403051DX	200	176	12.7	0.65	41	RH
0403051SX	200	176	12.7	. + Show More - Show Less General catalogue - Find out more 225 Contact Us I have read and accept   the information  relating to the processing of personal data pursuant to the EU Regulation 2016/679 articles 13 and 14. (*) You authorize us to contact you and send you by email information about our services / products / events and promotions that may interest you. Authorization to process data for this purpose is not necessary, but you would risk missing something that might interest you. Fields marked with * are required
