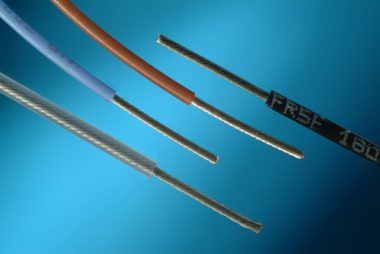

Single-pole cables for internal cabling in single insulation (Certificate IMQ No. A2641)

Test voltage: 2.5 kV
Operating temperature: -55 – 180 °C in fixed position
Minimum radius of curvature: 10 times the external diameter

CONSTRUCTION CHARACTERISTICS (in accordance with standard CEI 20-51):
– Flexible conductor in tinned electrolytic copper concentric cord.
– Insulation in FEP type FR5F compliant with standard CEI 20-51.

NB: AT THE MOMENT AVAILABLE ONLY IN BLUE, WHITE, RED AND BLACK.
